RAVAS iJack-26 Electric Pallet Jack Scale

The RAVAS iJack-26 is an innovative electric pallet jack that integrates precise weighing capabilities with advanced data management features. Designed for dynamic environments such as warehouses, retail stores, and manufacturing floors, the iJack-26 streamlines operations by allowing users to lift, transport, and weigh loads seamlessly.

Key Features

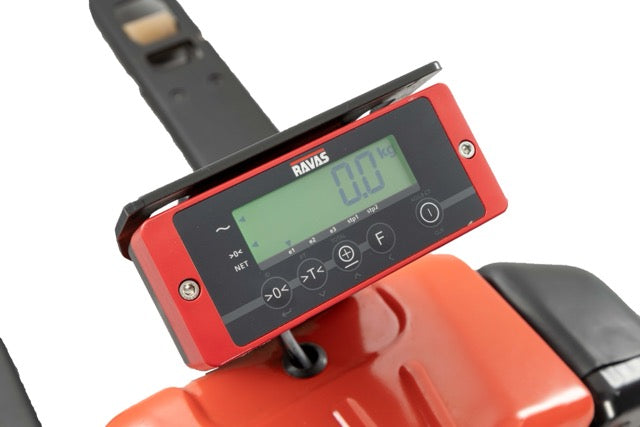

• Integrated Weighing System: Equipped with a RAVAS scale system, the iJack-26 offers a weighing accuracy of 0.1%, enabling optimal load planning and compliance with regulations.
• Ergonomic Design: Features such as a belly button reversing switch, dual butterfly travel controls, and key switch functions enhance operator comfort and safety, especially in tight spaces.
• Advanced Connectivity: Built-in Wi-Fi and Bluetooth capabilities facilitate real-time data transmission to warehouse management systems (WMS) via the RAVAS WeightsApp, improving inventory accuracy and workflow efficiency.
• Durable Construction: The iJack-26 is constructed with an industry-leading chassis and readily available components, ensuring reliability and ease of maintenance.

Technical Specifications

• Lifting Capacity: 2,600 lbs
• Load Center: 24 inches
• Axle Center to Fork Face: 37.40 inches
• Wheelbase: 46.85 inches
• Service Weight (Including Battery): 268.50 lbs
• Battery: Rechargeable lithium-ion battery with quick-charging capability
• Connectivity: Wi-Fi and Bluetooth enabled
• Ergonomic Features: Belly button reversing switch, dual butterfly travel controls, key switch functions

Applications

• Warehousing: Streamlining the process of moving and weighing goods within storage facilities.
• Retail: Efficiently handling inventory in retail environments.
• Manufacturing: Managing materials and components on production floors.
• Logistics: Enhancing the accuracy and speed of shipping and receiving operations.

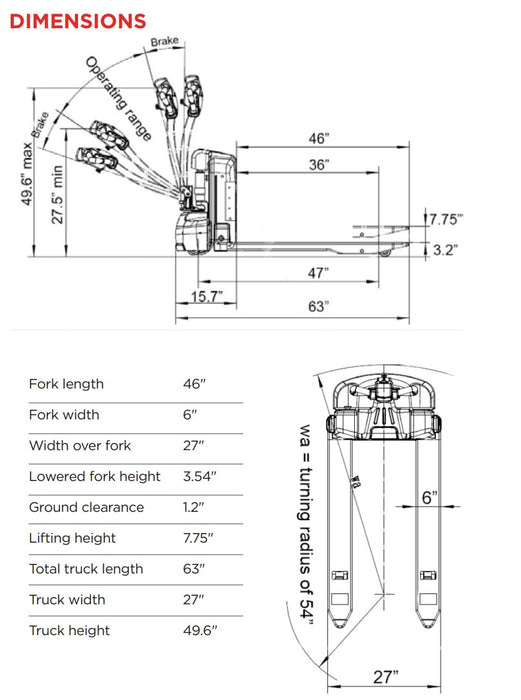

RAVAS iJack-40 Spec Sheet
