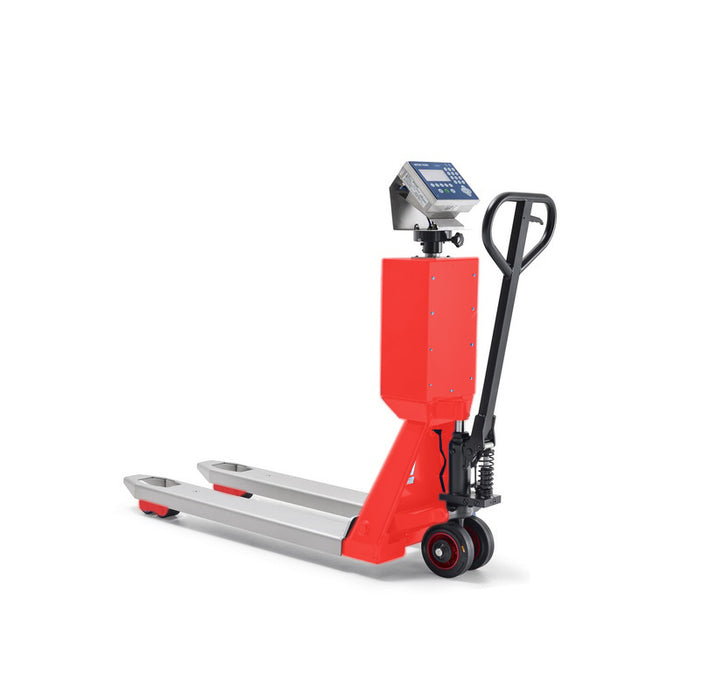

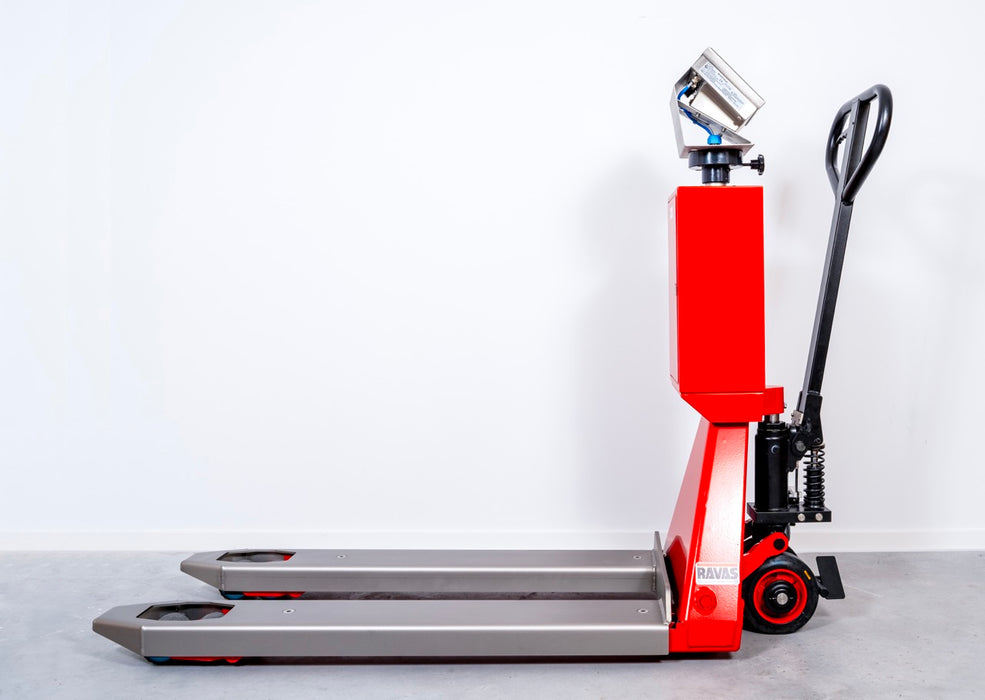

RAVAS-256X Hand Pallet Jack Scale

The RAVAS-256X is an FM-certified, explosion-proof hand pallet jack scale equipped with stainless steel fork shoes. It's engineered to operate safely in hazardous conditions, including environments with corrosive substances, extreme temperatures, and heavy loads.

Key Features

• Explosion-Proof Certification: FM certified for Class I, II, III Division 1, Groups A-G, Temperature Class T4, Ta = 104°F, ensuring safe operation in explosive atmospheres.
• High Accuracy: Provides precise weight measurements with a maximum tolerance of 0.1% of the load lifted, enhancing inventory management and reducing human error.
• Integrated Weighing: Combines the functions of a pallet jack and a scale, allowing operators to weigh loads directly during movement, eliminating the need for separate weighing steps.
• Durable Construction: Features stainless steel fork shoes and an epoxy-coated frame, designed to withstand harsh industrial environments.

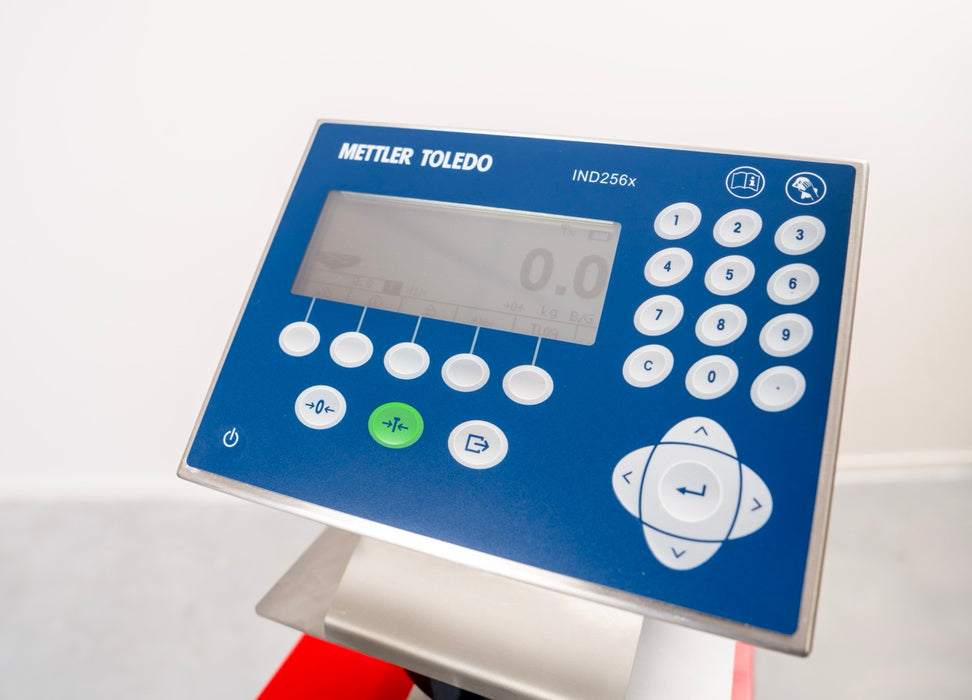

• User-Friendly Display: Equipped with a large, backlit LCD display with 1.2-inch-high digits for easy readability.

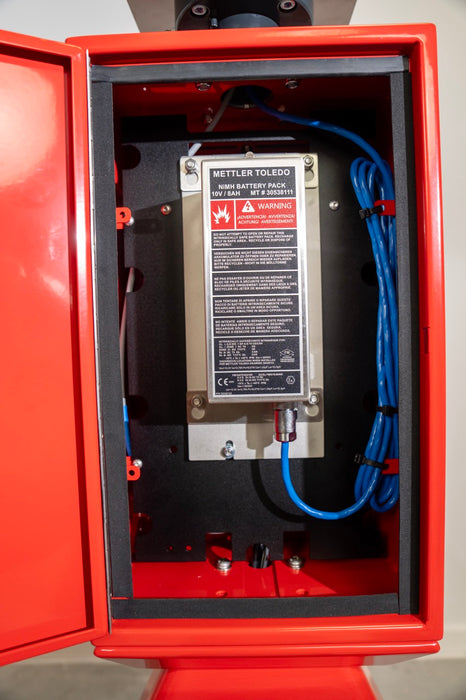

• Power Supply: Powered by an intrinsically safe, rechargeable, and exchangeable battery with a cycle time of up to 70 hours and approximately 6 hours of charging time.

Technical Specifications

• Weighing Capacity: 5,000 lbs
• Weighing Capacity: 5,000 lbs
• Graduation: 1 lb
• Maximum Tolerance: 0.1% of the load lifted
• Display: Backlit LCD, 1.2" high digits
• Protection Class: System IP65; load cells and terminal IP67
• Battery Cycle Time: 70 hours
• Charging Time: Approximately 6 hours
• Steering Wheels: Rubber, antistatic
• Loading Wheels: Polyurethane, single
• Own Weight: 330 lbs
• Finishing/Color: Epoxy coated / red, RAL3000

Optional Features

• Full Stainless Steel Version: For enhanced corrosion resistance and hygiene.
• NTEP-Certified Legal for Trade Version: Allows for invoicing based on weight measurements.
• Rotating Indicator: Features large push buttons for ease of use, even with gloves.
• Wi-Fi Connectivity: Enables seamless data integration with warehouse management systems.

Applications

• Mixing and Batching: Ensures precise measurements in hazardous environments.
• Filling Operations: Provides accurate weight readings during the filling process.
• Dosing Applications: Facilitates exact dosing of materials, enhancing product consistency.
• Use Case: CML Europe utilizes the RAVAS-256X for mixing and dosing chemical raw materials in ATEX zone 1&21 environments, highlighting its reliability and precision in critical applications.

RAVAS 256X Hand Pallet Jack
